 Post subject: DIY Crank Pulley Removal Tool
PostPosted: Tue Jan 22, 2013 7:49 pm
SLi Resident
User avatar

Joined: Thu Dec 20, 2007 4:19 am
Posts: 910
Location: Seattle, WA
Ok, so I changed the timing belt on my mom's '01 outback last weekend and I ended up having to do some fabrication along the way. Her car is a 4EAT so locking up the crank wasn't going to be as simple as putting it in 5th gear (like I can with my 5MT BD). Long story short, I decided to fabricate a crank pulley removal tool based on the one used by Subaru.

I am a Manufacturing Engineer by trade, so I have plenty of toys and material at my disposal. I used a bit of my spare time and scrap metal to make this:





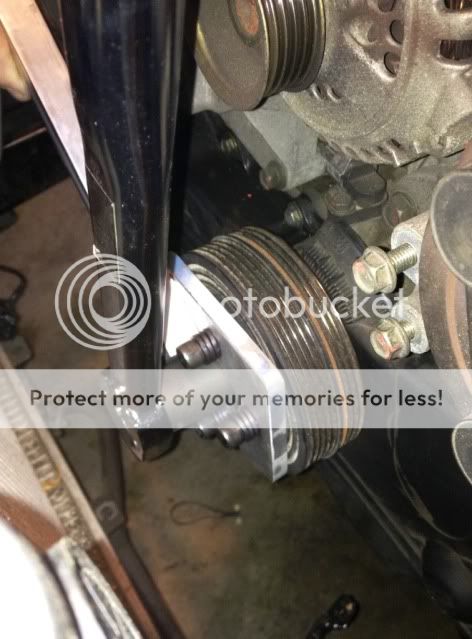

And yes, it works perfectly:

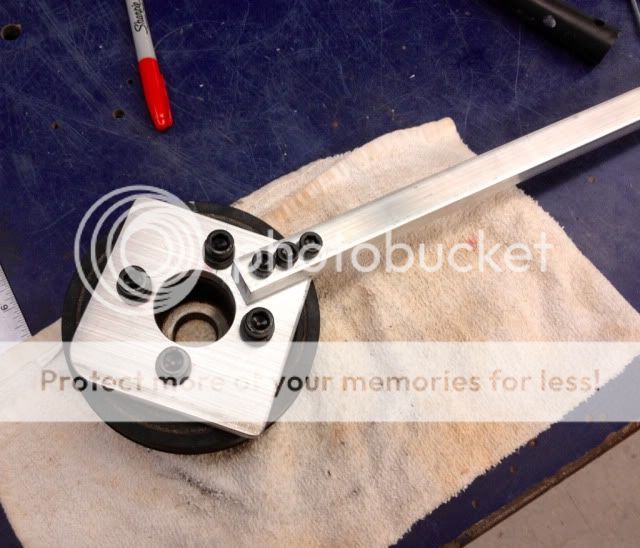

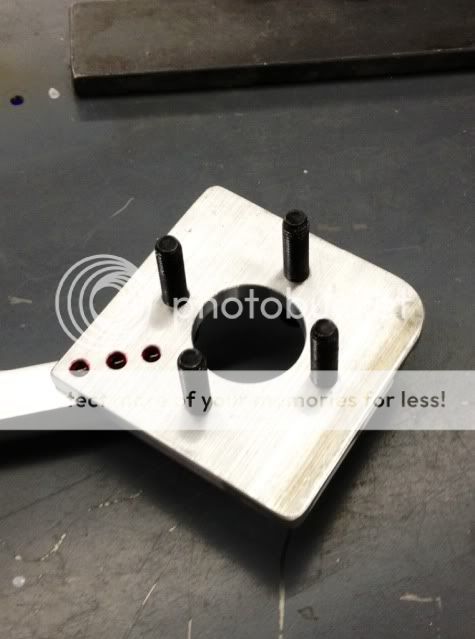

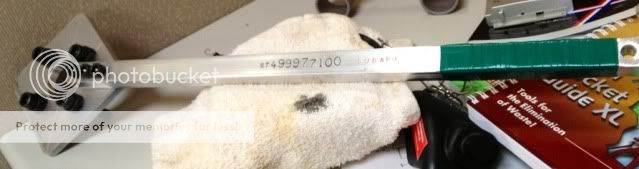

The whole thing is made from 6061 AL, 3/8" plate and 1" square bar, all tightly bolted together. I CNC cut the center hole to 1.62" to line up with the hole in the pulley and give adequate access for the 22mm socket.




....and boom goes the dynamite



_________________
Justin W.
Manufacturing Engineer - Process Optimizer
Freelance Designer, Engineer and Fabricator

99 2.5 GT Limited "QuickSilver" 5MT

started with 52k in 11/07
now
112k.... and counting:)
Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Tue Jan 22, 2013 8:44 pm
"Proby"
User avatar

Joined: Sun Nov 01, 2009 7:12 pm
Posts: 257
Location: Tenino, WA
And how much you want for it?



_________________
98 Metro Hatch Daily Driver :)
91 SS EJ20G Engine/Tranny/Diff Swap Build Thread Here
"Your testes are close to your bottom but you still play with them all the time." Jeremy Clarkson
Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Tue Jan 22, 2013 8:45 pm
"Proby"
User avatar

Joined: Sun Nov 01, 2009 7:12 pm
Posts: 257
Location: Tenino, WA
It woyld also be nice to have a tool for holding the cams in place and one for holding the flywheel in place.



_________________
98 Metro Hatch Daily Driver :)
91 SS EJ20G Engine/Tranny/Diff Swap Build Thread Here
"Your testes are close to your bottom but you still play with them all the time." Jeremy Clarkson
Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Tue Jan 22, 2013 9:34 pm
SLi O.G.
User avatar

Joined: Mon Mar 23, 2009 8:20 pm
Posts: 2025
Location: HighCal (aka NorCal)
does the same thing that 2 3/8 extensions do in the stock pulley when combined with a prybar. There are holes in the stock pulley that are exactly the size needed to fit the 3/8 extensions.

Not dissing you... but just letting others know who might not have your tools and resources at their disposal.

Trust me... if I had your tools and resources... I would be making this too!!!!


For the cams... you can use the same method that I described as long as the heads are still on the block and you have a timing belt. Lock the crank pulley with the 3/8 extensions and pry bar and you have also locked your cam pulleys. :)



_________________
Harry Maneuvers
1999 Legacy Sedan 30th Anniversary Edition EJ251/EJ22 High Compression Frankenmotor http://sl-i.net/FORUM/viewtopic.php?f=6&t=24668
2004 WRX Wagon widebody swap - The Braggin Wagon http://sl-i.net/FORUM/viewtopic.php?f=7&t=24369
2006 Forester XT - Mrs. Fancy http://sl-i.net/FORUM/viewtopic.php?f=7&t=25160
Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Tue Jan 22, 2013 10:08 pm
"Proby"
User avatar

Joined: Sun Nov 01, 2009 7:12 pm
Posts: 257
Location: Tenino, WA
Ill take a look at the pulley. Not sure what you're saying but I want to lock my cams in place to make it easier to install the belt so that won't work for the cams.



_________________
98 Metro Hatch Daily Driver :)
91 SS EJ20G Engine/Tranny/Diff Swap Build Thread Here
"Your testes are close to your bottom but you still play with them all the time." Jeremy Clarkson
Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Tue Jan 22, 2013 10:30 pm
t3h ub3r m3mb3r
User avatar

Joined: Tue Mar 06, 2007 11:50 pm
Posts: 1069
Location: Duluth, MN
Pretty fancy, I usually just jam the breaker bar against the frame rail/floor, disconnect the coil, and bump the starter :)



_________________
1992 T-leg: Built from 2 half cars, beaten on, loved, sold, missed. friend owns it atleast
1998 Legacy 2.5GT: Stock to turbo to stock, and given to my Dad
1997 Legacy L: Swapped 2.5 DOHC, sold to father in law
1998 Legacy 2.0GT-rx: Bought not built, but slowly making it my own
Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Tue Jan 22, 2013 10:56 pm
SLi Resident
User avatar

Joined: Thu Dec 20, 2007 4:19 am
Posts: 910
Location: Seattle, WA
harrymaneuvers wrote:
does the same thing that 2 3/8 extensions do in the stock pulley when combined with a prybar. There are holes in the stock pulley that are exactly the size needed to fit the 3/8 extensions.

Not dissing you... but just letting others know who might not have your tools and resources at their disposal.

Trust me... if I had your tools and resources... I would be making this too!!!!



I'm just going to be short with you here...

It doesn't do the same thing, this provides an even amount of force to all holes in the metal part of the pulley. Using 3/8" extensions is proven to be a dangerous and potentially costly method as it can unbalance or damage the pulley potentially causing a rather catastrophic failure. I would not suggest this.



_________________
Justin W.
Manufacturing Engineer - Process Optimizer
Freelance Designer, Engineer and Fabricator

99 2.5 GT Limited "QuickSilver" 5MT

started with 52k in 11/07
now
112k.... and counting:)
Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Tue Jan 22, 2013 10:59 pm
SLi Resident
User avatar

Joined: Thu Dec 20, 2007 4:19 am
Posts: 910
Location: Seattle, WA
grayguy wrote:
Pretty fancy, I usually just jam the breaker bar against the frame rail/floor, disconnect the coil, and bump the starter :)


That would work for getting the pulley off, but when torquing the bolt down to 130 lb-ft after putting the timing belt back together I couldn't use that method.



_________________
Justin W.
Manufacturing Engineer - Process Optimizer
Freelance Designer, Engineer and Fabricator

99 2.5 GT Limited "QuickSilver" 5MT

started with 52k in 11/07
now
112k.... and counting:)
Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Tue Jan 22, 2013 11:00 pm
SLi Resident
User avatar

Joined: Thu Dec 20, 2007 4:19 am
Posts: 910
Location: Seattle, WA
kimokalihi wrote:
And how much you want for it?


Make me an offer :grin:



_________________
Justin W.
Manufacturing Engineer - Process Optimizer
Freelance Designer, Engineer and Fabricator

99 2.5 GT Limited "QuickSilver" 5MT

started with 52k in 11/07
now
112k.... and counting:)
Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Tue Jan 22, 2013 11:29 pm
"Proby"
User avatar

Joined: Sun Nov 01, 2009 7:12 pm
Posts: 257
Location: Tenino, WA
Lol probably too much for my wallet. I don't need a fancy one. If I had a welder I'd make my own. My friend has one maybe I should make all three tools. The cam one is easy. 4 box end 17mm wrenches cut in half welder together would hold all four cams in place and the flywheel tool is super easy to make. Piece of a gear cut out and ito a small triangle and drill a hole or two into it to bolt to back of block.



_________________
98 Metro Hatch Daily Driver :)
91 SS EJ20G Engine/Tranny/Diff Swap Build Thread Here
"Your testes are close to your bottom but you still play with them all the time." Jeremy Clarkson
Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Tue Jan 22, 2013 11:53 pm
SLi Resident
User avatar

Joined: Thu Dec 20, 2007 4:19 am
Posts: 910
Location: Seattle, WA
To be honest, i don't even need this thing. I have a lightweight pulley on my car and it's a 5MT so I don't really need this. I made it for a 1 time job. If you are really interested make me an offer...



_________________
Justin W.
Manufacturing Engineer - Process Optimizer
Freelance Designer, Engineer and Fabricator

99 2.5 GT Limited "QuickSilver" 5MT

started with 52k in 11/07
now
112k.... and counting:)
Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Wed Jan 23, 2013 2:52 am
"Proby"
User avatar

Joined: Sun Nov 01, 2009 7:12 pm
Posts: 257
Location: Tenino, WA
I'd give you $40 shipped for it. Does it clear the radiator fans?



_________________
98 Metro Hatch Daily Driver :)
91 SS EJ20G Engine/Tranny/Diff Swap Build Thread Here
"Your testes are close to your bottom but you still play with them all the time." Jeremy Clarkson
Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Wed Jan 23, 2013 9:57 pm
SLi Resident
User avatar

Joined: Thu Dec 20, 2007 4:19 am
Posts: 910
Location: Seattle, WA
It should, although I haven't tried it with them in.

I'm debating keeping this, so I'll let you know if I want to get rid of it. I would probably want to get at least 60 if I were to sell it.



_________________
Justin W.
Manufacturing Engineer - Process Optimizer
Freelance Designer, Engineer and Fabricator

99 2.5 GT Limited "QuickSilver" 5MT

started with 52k in 11/07
now
112k.... and counting:)
Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Thu Jan 24, 2013 12:28 am
"Proby"
User avatar

Joined: Sun Nov 01, 2009 7:12 pm
Posts: 257
Location: Tenino, WA
I understand.



_________________
98 Metro Hatch Daily Driver :)
91 SS EJ20G Engine/Tranny/Diff Swap Build Thread Here
"Your testes are close to your bottom but you still play with them all the time." Jeremy Clarkson
Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Thu Jan 24, 2013 4:54 am
SLi Resident
User avatar

Joined: Sun Jun 27, 2010 2:54 pm
Posts: 784
Location: Portland, OR.
In my experience these tools do not work very well, especially when the posts are threaded. the threads dig into the rubber and destroy the crank pulley.
all you need to do is put a wrench of screwdriver into the flex plate or flywheel teeth, and that holds it a lot better
or if you are trying to get a crank pulley off an engine that is already removed from a car, you might need an air impact or a chain vicegrip and breaker bar


Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Thu Jan 24, 2013 6:45 pm
SLi Resident
User avatar

Joined: Thu Dec 20, 2007 4:19 am
Posts: 910
Location: Seattle, WA
elislider wrote:
In my experience these tools do not work very well, especially when the posts are threaded. the threads dig into the rubber and destroy the crank pulley.
all you need to do is put a wrench of screwdriver into the flex plate or flywheel teeth, and that holds it a lot better
or if you are trying to get a crank pulley off an engine that is already removed from a car, you might need an air impact or a chain vicegrip and breaker bar



You really need to read the whole thread before chiming in. There is no access to the flexplate from the backside on the '01 Outback I was using this on. I also had no intention of pulling the starter out to gain access.

The bolts seat all the way down in the holes in the steel section of the pulley, therefore there is no load on the rubber.

This was more of a "hey look what I made" thread, not looking for suggestions. It works just fine.



_________________
Justin W.
Manufacturing Engineer - Process Optimizer
Freelance Designer, Engineer and Fabricator

99 2.5 GT Limited "QuickSilver" 5MT

started with 52k in 11/07
now
112k.... and counting:)
Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Thu Jan 24, 2013 8:53 pm
SLi Resident
User avatar

Joined: Sun Jun 27, 2010 2:54 pm
Posts: 784
Location: Portland, OR.
All EJ engines have a little access hole next to the PCV/breather. thats where you jam a wrench/screwdriver.

but thats good that the bolts are long enough to get to the metal part of the pulley. that's key


Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Thu Jan 24, 2013 9:16 pm
SLi Resident
User avatar

Joined: Thu Dec 20, 2007 4:19 am
Posts: 910
Location: Seattle, WA
Yeah I know where you're talking about I just didn't want to pull everything off the top of the engine since I was only doing the T-belt. Worked great, got full torque and didn't damage anything so I'm calling it a win.



_________________
Justin W.
Manufacturing Engineer - Process Optimizer
Freelance Designer, Engineer and Fabricator

99 2.5 GT Limited "QuickSilver" 5MT

started with 52k in 11/07
now
112k.... and counting:)
Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Thu Jan 24, 2013 9:30 pm
SLi O.G.
User avatar

Joined: Mon Mar 23, 2009 8:20 pm
Posts: 2025
Location: HighCal (aka NorCal)
I am having a hard time understanding how the 3/8th inch extensions would be any worse than a threaded bolt the same diameter???


Assuming you place the 3/8th inch extensions in the holes that make them directly opposite of eachother (inserted far enough to contact the metal)... how on earth would that method damage a pulley?!?!?!


I am not taking away from your creativity or ability to make such a tool... I am just stating the method I used to achieve the same results.


Elislider and I used the "pry bar in the flywheel access hole" method to replace the WRX crank pulley with a Perrin and we were able to access the hole perfectly fine... even with a TMIC and all the other stuff that a turbo car comes with.

I used my method with the FXT without any harm.


Also, your tool will only work for those of us that still have a stock crank pulley. Aftermarket pulleys do not retain those holes which is why I opted to NOT replace the FXT pulley with an LWCP.



_________________
Harry Maneuvers
1999 Legacy Sedan 30th Anniversary Edition EJ251/EJ22 High Compression Frankenmotor http://sl-i.net/FORUM/viewtopic.php?f=6&t=24668
2004 WRX Wagon widebody swap - The Braggin Wagon http://sl-i.net/FORUM/viewtopic.php?f=7&t=24369
2006 Forester XT - Mrs. Fancy http://sl-i.net/FORUM/viewtopic.php?f=7&t=25160
Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Thu Jan 24, 2013 9:56 pm
"Proby"
User avatar

Joined: Sun Nov 01, 2009 7:12 pm
Posts: 257
Location: Tenino, WA
That hole is not really accessible on my car with 06-07 tmic and td05.



_________________
98 Metro Hatch Daily Driver :)
91 SS EJ20G Engine/Tranny/Diff Swap Build Thread Here
"Your testes are close to your bottom but you still play with them all the time." Jeremy Clarkson
Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Thu Jan 24, 2013 10:07 pm
SLi Resident
User avatar

Joined: Sun Jun 27, 2010 2:54 pm
Posts: 784
Location: Portland, OR.
idk seems to not be an issue for any subaru i've ever worked on. anyways i wasnt trying to start an argument over that.
the worst part for me has always been that the access hole cover is always petrified so getting it off always makes it break and then i have to get a new one.


Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Thu Jan 24, 2013 10:20 pm
"Proby"
User avatar

Joined: Sun Nov 01, 2009 7:12 pm
Posts: 257
Location: Tenino, WA
Mine won't even go back in its so hardened so I don't use it. Haven't dropped anything in the hole yet....



_________________
98 Metro Hatch Daily Driver :)
91 SS EJ20G Engine/Tranny/Diff Swap Build Thread Here
"Your testes are close to your bottom but you still play with them all the time." Jeremy Clarkson
Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Fri Jan 25, 2013 12:33 am
Th3 EviL OvErLORd
User avatar

Joined: Thu Apr 14, 2005 2:25 am
Posts: 13441
Location: Rhode Island U.S. of A(wesome)!
Wow these tools dont really work well?? Where on Nasioc did you read that from?? If taken pulleys off all kinds ways. A pulley tool is by far the quickest, easiest, safest and potentially causing the least amount of damage. Ive taken off stock and aluminum pulleys and the threads dont damage anything on the pulley.

Great work once again Justin!



_________________
SLi's 11th Annual NE meet 2014!!
:smt029 "Speed, who needs it. If you are important, people will wait for you."- Me

4Zero1 Motorsports NOW OPEN!
1998 BD7 L 244K (current 270K+) running like a champ! 105WHP 109TQ of fury!
1993 Suzuki GSX-R 750
1998 BK? L PARTED
1991 Legacy SS SOLD
1997 BD9 GT R.I.P. 12/24/06 Running Mean with 117 whp!
1989 Honda CR-X A.K.A. "The Beast"
1991 Suzuki GSX-R 750 R.I.P. 11/10/06

SLi Facebook
4Zero1Motorsports Facebook

"No matter how much you've done, or how successful you've been, there's always more to do, always more to learn, and always more to achieve." - Barack Obama
Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Fri Jan 25, 2013 1:08 am
SLi Resident
User avatar

Joined: Sun Jun 27, 2010 2:54 pm
Posts: 784
Location: Portland, OR.
lol i said from my PERSONAL experience they dont work very well. specifically because the posts are threaded so you risk damaging the pulley. if they were smooth posts, that would be a different story


Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Fri Jan 25, 2013 8:43 am
Th3 EviL OvErLORd
User avatar

Joined: Thu Apr 14, 2005 2:25 am
Posts: 13441
Location: Rhode Island U.S. of A(wesome)!
I had to say it lol, But I never had any problems. The GrimmSpeed tool has threaded bolts and works fine.



_________________
SLi's 11th Annual NE meet 2014!!
:smt029 "Speed, who needs it. If you are important, people will wait for you."- Me

4Zero1 Motorsports NOW OPEN!
1998 BD7 L 244K (current 270K+) running like a champ! 105WHP 109TQ of fury!
1993 Suzuki GSX-R 750
1998 BK? L PARTED
1991 Legacy SS SOLD
1997 BD9 GT R.I.P. 12/24/06 Running Mean with 117 whp!
1989 Honda CR-X A.K.A. "The Beast"
1991 Suzuki GSX-R 750 R.I.P. 11/10/06

SLi Facebook
4Zero1Motorsports Facebook

"No matter how much you've done, or how successful you've been, there's always more to do, always more to learn, and always more to achieve." - Barack Obama
Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Tue Feb 05, 2013 1:18 am
"FNG"

Joined: Fri Mar 23, 2012 1:53 am
Posts: 88
Location: Bozeman, MT
Why not just put a long breaker bar on the pulley, brace it up against the driver's side frame rail, and hit the starter real quick? Doesn't work for re-installing the bolt but that's the fastest I've ever seen a crank bolt come loose!


Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Tue Feb 05, 2013 10:03 am
OMFGAWD
User avatar

Joined: Mon Jul 11, 2005 2:13 pm
Posts: 1249
Location: Apple Valley, MN
I've used the 3/8th inch extensions before, (2)
guess what, I bent both of them. (and IIrc, I enlarged the hole in the pulley too)

yeah it's a $80 tool, but it's the correct one to use. (you can rent it out to local members)
http://www.autotoolworld.com/product.as ... MgodZSgAgw
I also have the Grimmspeed tool (prototype) and it works just fine.


Offline
 Profile

 Post subject: Re: DIY Crank Pulley Removal Tool
PostPosted: Tue Feb 05, 2013 10:35 pm
"FNG"

Joined: Fri Mar 23, 2012 1:53 am
Posts: 88
Location: Bozeman, MT
phi11 wrote:
I've used the 3/8th inch extensions before, (2)
guess what, I bent both of them. (and IIrc, I enlarged the hole in the pulley too)

yeah it's a $80 tool, but it's the correct one to use. (you can rent it out to local members)
http://www.autotoolworld.com/product.as ... MgodZSgAgw
I also have the Grimmspeed tool (prototype) and it works just fine.

I swear the 1/2" breaker bar braced to the frame works brilliantly. I felt like an idiot when I first tried it because I've broken so many different tools getting other people's crank pulleys off. Just turn the key and as soon as you hear the engine actually crank it's done. The starter has more than enough torque to bust that sucker loose, just make sure not to let the engine actually start. If you hit the starter and you don't hear it try to start then that thing is really on there and you need a special tool or some other methods of getting it loose, don't hold the key down hoping it will work as you will melt your starter and wires.


Offline
 Profile

Display posts from previous:  Sort by
 Page 1 of 1 [ 28 posts ]

All times are UTC - 5 hours


Who is online

Users browsing this forum: Yahoo [Bot] and 2 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum

Search for:
Jump to:

cron
